1991 Audi 200

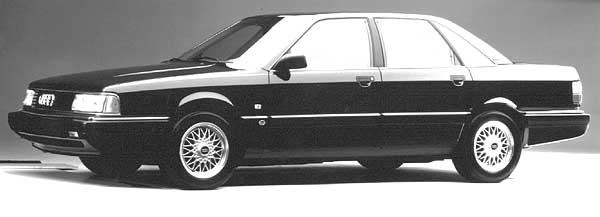

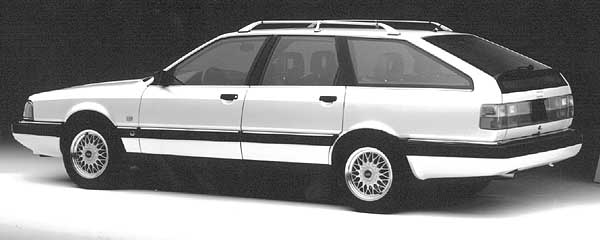

1991 Audi 200 quattro (top), 1991 Audi 200 quattro Wagon, Photos courtesy of Audi of America

1991 Audi 200

Trim Levels, Colors and Available Options
Available Trim Levels:	200 Turbo / 200 Turbo quattro / 200 Turbo quattro wagon
Available Options:	Automatic transmission w/ shift lock (200 turbo) Cold Weather Package - Heatable door locks, front seats, windshield washer nozzles Front Sport Seats (200 turbo) Full leather Upholstery (200 turbo) Pearl White paint Roof rails (200 turbo quattro wagon only)
Available Exterior Colors:	Alpine White / Azurite Blue / Clearcoat Black / Tornado Red / Bamboo / Cayenne Mica / Glacier Blue / Lago Blue / Nautical Blue / Pear White / Stone Grey / Taupe / Zermatt Silver
Available Interior Colors:	Serret Velour: • Marine Blue • Quartz Grey • Graphite Chenille Velour: • Marine Blue • Quartz Grey • Graphite Leather: • Graphite • Platinum Grey • Nautical Blue

Technical Specs

Model:	200 Turbo	200 Turbo quattro/Turbo quattro wagon
Engine/Engine Design
Type:	5-cylinder, in-line	5-cylinder, in-line, 20-valve
Bore:	3.19 in. (81.0 mm)
Stroke:	3.40 in.
Displacement:	136.0 cu. in. (2226 cc)
Compression Ratio:	7.8:1
Horsepower (SAE Net):	162 @ 5500 RPM	217 @ 5700 RPM
Torque:	177 ft. lbs. @ 3000 RPM	228 ft. lbs. @ 1950 RPM
Cylinder block:	Cast Iron
Crankshaft:	Forged Steel, 6 main bearings
Cylinder head:	Aluminum alloy
Valve Train:	Single overhead camshaft, belt driven; hydraulic lifters	Dual overhead camshaft, belt-driven, hydraulic lifters, 4 valves-per-cylinder, sodium filled valves
Firing Order:	1-2-4-5-3
Cooling System:	Water-cooled, thermostatically controlled electric fan
Fuel System:	CIS fuel injection, turbo-charged with intercooler, digital boost control
Drivetrain
Type:	Front-wheel drive	Quattro all-wheel drive
Transmission:	3-speed automatic	5-speed manual
Gear Ratios: 1st 2nd 3rd 4th 5th Reverse Final Drive	Automatic 2.71:1 1.50:1 1.00:1 ---- ---- 2.43:1 3.08:1	Manual 3.60:1 2.13:1 1.36:1 0.97:1 0.73:1 3.50:1 3.89:1
Steering
Type:	Rack & pinion, power assisted
Ratio:	18.7:1
Turns (lock-to-lock):	3.5
Turning circle (curb-to-curb):	34.2 ft.
Suspension
Front:	MacPherson struts with negative roll radius, stabilizer bar, coil springs
Rear:	Torsion crank axle, panhard rod, coil spring/shock absorber struts, stabilizer bar	Independent four-joint trapezoidal arms, coil spring/shock absorber struts
Brakes
Service brake:	Hydraulic power-assit dual circuit with anti-lock brake system (ABS)
Front, size and type:	10.9 in., Vented front discs
Rear, size and type:	9.6 in., solid discs
Wheels & Tires
Wheel size:	6j x 15 light alloy
Tire size:	205/60 15
Body
Material:	Unitized construction
Corrosion protection:	27-step anti-corrosion and paint process. Total immersion pre-treatment, cataphoretic dip primer coating, hot wax cavity filler, PVC under sealant, extensive use of galvanized panels
Capacities
Engine Oil:	5.3 U.S. quarts
Fuel Tank:	21.1 U.S. gallons	20.6 U.S. gallons
Cooling System:	8.5 U.S. quarts
Exterior Dimensions
Wheelbase:	105.6 in.	105.9 in.
Front Track:	58.1 in.
Rear Track:	58.0 in.	58.8 in.
Overall length:	192.7 in.
Overall Width:	71.4 in.
Height (unloaded):	55.9 in.
Ground Clearance:	5.3 in.	5.0 in.
Curb Weight:	3086 lbs	3351 lbs (3439 lbs wagon)
Interior Dimensions
Seating Capacity:	5
Front Legroom:	41.1 in.
Rear Legroom:	35.3 in.
Interior Volume Front:	51.2 cu. ft.
Interior Volume Rear:	42.6 cu. ft.	42.6 cu. ft. (43.4 wagon)
Luggage capacity:	16.7 cu. ft	16.7 cu. ft (37.1 wagon)
Performance
0-50 mph (0-80 kmh):	6.4 auto	n/a
0-60 mph (0-100 kmh):	8.9 auto	6.5 sec.(6.6 wagon)
1/4 Mile:	n/a	n/a
Top estimated speed:	132 mph	150 mph (148 wagon)
Fuel Economy
City:	18 mpg	18 mpg
Highway:	22 mpg	24 mpg
Combined:	n/a	n/a

Standard Features
Technical:	• 2.22L turbocharged 5-cylinder engine, fuel-injected with hydraulic valve lifters and electronic idle, ignition and boost control, knock sensor, boost air intercooler and water-cooled turbo housing (200) • 2.22L, 20-valve, turbocharged 5-cylinder engine, fuel-injected with hydraulic valve lifters and electronic idle, ignition and boost control, knock sensor, boost air intercooler and water-cooled turbo housing • Engine oil cooler • Clutch, self adjusting hydraulic with asbestos free lining • Center TORSEN differential (Quattro models only) • Lockable rear differential with automatic disengagement (Quattro models only) • Front-wheel drive (200 Turbo) • Full time all-wheel drive (quattro models only) • 5-speed manual transmission • Coil spring/shock absorber struts (front and rear) • Multi-link rear independent suspension (quattro models only) • Negative steering roll radius • Front Stabilizer bar • Rear Stabilizer bar (200 turbo) • Torsion crank axle, panhard rod (200 turbo) • Anti-lock Brake System (ABS) • Brake linings, asbestos free • Power 4-wheel discs (vented front) • Power rack-and-pinion steering, variable assist • 205/60 15 steel belted radial tires • Alloy wheels, aero style (200 turbo) • Alloy wheels, sport latic style (quattro models only)
Comfort & Convenience:	• Automatic climate control • Anti-theft vehicle alarm system • Front center folding armrest • Rear center folding armrest (n/a on wagon) • Digital clock • Center console with air vent • Cargo area cover (100 wagon) • Electronic cruise control with resume feature • Rear window defogger • Lockable fuel cap with retention feature • Tinted glass; banded windshield • Four overhead assist handles • Heat ducts to rear seat area • Ignition key with integrated light • Interior courtesy/delay illumination • Illumination, supplemental: Engine compartment; glove box; headlamp switch; ignition key; lighters and ashtray; luggage compartment/trunk; map/reading lights (3); power mirror controls; power window controls • Instrumentation (backlit): Coolant temperature gauge; electric speedometer (160 mph); fuel gauge; oil temperature, oil pressure, voltmeter; tachometer; trip odometer • Power locking system, including trunk or liftgate, operable from either front door • Child safety rear locks • Front seatback map pockets • Power outside mirrors with defog feature • Illuminated vanity mirrors • 6-speaker package • AM/FM stereo with auto-reverse cassette, and anti theft coding • Dual diversity antenna (n/a on Wagon) • Retained accessory power for windows & sunroof • Front 3-point seat belts; height adjustable • Rear 3-point seat belts • 8-way power front seats with 4 memory positions (driver seat) • Sport Seats (optional on 200 turbo) • Ski/storage sack (n/a on wagon) • 60/40 split/fold rear seat (Wagon) • Leather wrapped steering wheel, shift knob and shift boot • Storage compartments, cargo/trunk • Color-coordinated dashboard and trim • Wood inlays on console area, dashboard and door panels • Wraparound dash/door panel design • Power 2-way sunroof • Automatic front seat belt tensioners • Auto Check System with radio function display • Trip information computer (6 function) • Full leather upholstery (optional on 200 turbo) • Chenille velour upholstery (optional on quattro models) • Power windows with one-touch down driver window and rear window lock out • Rear intermittent window wiper with washer (Wagon) • Intermittent front wipers with hinged, foldable wiper arms
Exterior:	• 5 mph bumpers • Flush door handles • Rear fog light • Full rear reflective light panel • Fully galvanized sheet metal • Aerodynamic halogen headlamps • Wide-protective moldings with polished inserts • Multi-step factory rust protection • Rear spoiler (Wagon)
