Modifications for the Icom MISC

19-07-1998 ICxx71 ram adaptor for use with eprom programmer English language (2 Kbytes)
19-07-1998 BNC connectors for ICOM HTs replacement English language (3 Kbytes)
19-07-1998 CAT interface for any ICOM English language (<1 Kbytes)
09-11-2000 Reset ICOM radios English language (15 Kbytes)
13-05-2001 Use ICOM SM-20 Mic to Yaesu ,Kenwood, etc. English language (1 Kbytes)
03-11-2001 Icom Hex Addresses English language (2 Kbytes)
23-11-2001 QRP mod for ICOM transceivers English language (2 Kbytes)
22-08-2002 ICOM OPC-478 interface cable and schematic English language
  View all modification in one click. This can be a very big file.!! (67 Kbytes)

22-08-2002 add a comment

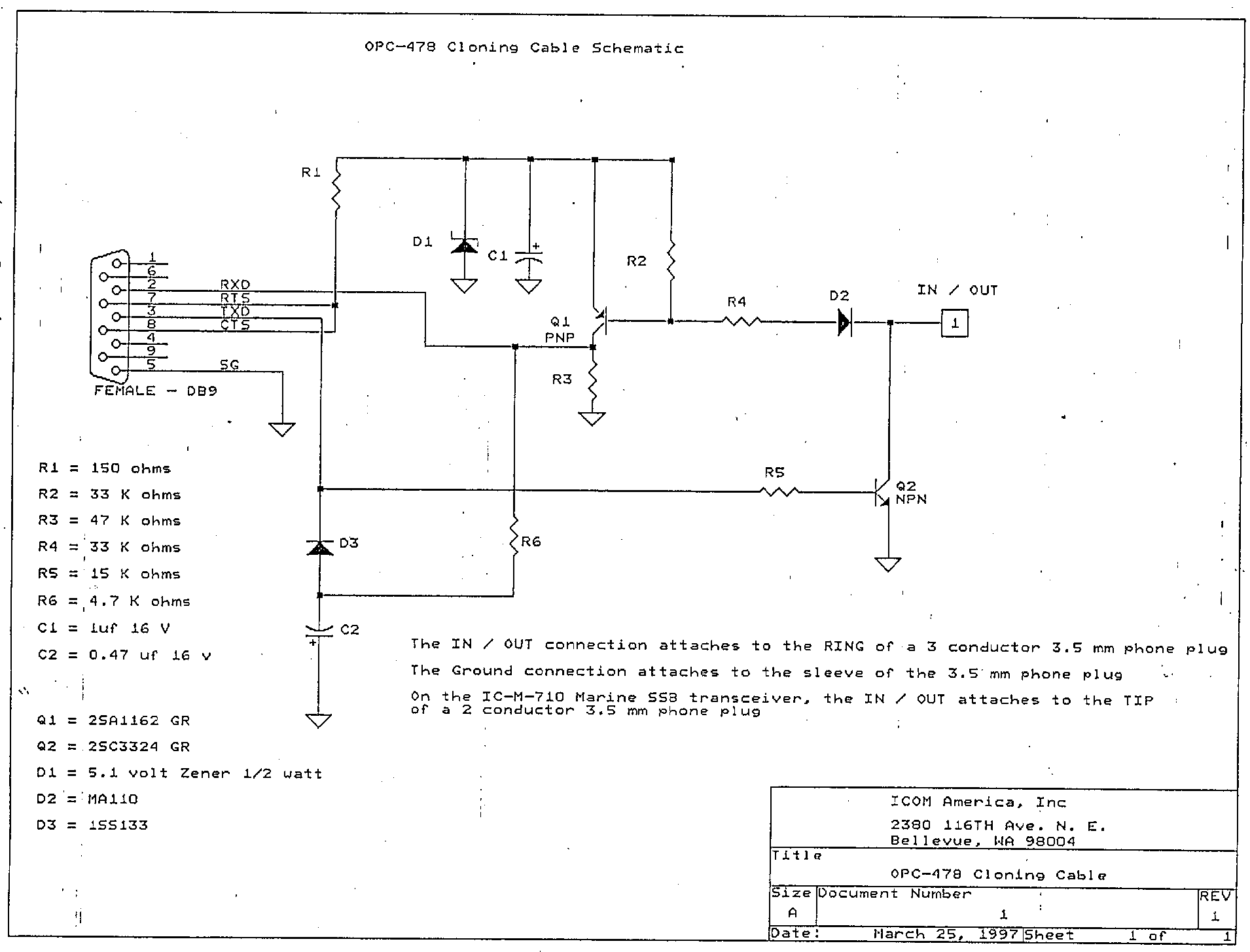

ICOM OPC-478 interface cable and schematic

Click to enlarge

This modification has been read 2440 times.
